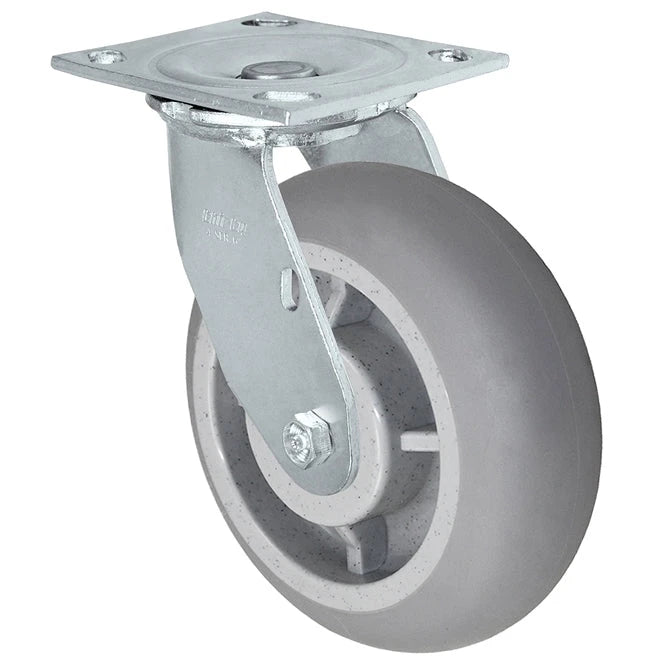

5" x 2" TPR Swivel Caster, 4" x 4-1/2" Top Plate, 500 lb, Model 30CS520DTR38X-03
Same or next business day processing
FedEx, UPS, or freight from Mansfield, TX. Tracking emailed when it ships.
30-day returns
Unused, in original packaging. Damaged on arrival? Call (844) 439-4335 within 48 hours.
Crew and case quantities
Moving companies and warehouses: call (844) 439-4335 or use the quote form below for case pricing.
5" x 2" TPR Swivel Caster, 4" x 4-1/2" Top Plate, 500 lb, Model 30CS520DTR38X-03: 5" x 2" thermoplastic rubber swivel caster, 4" x 4-1/2" top plate, rated 500 lb. Swap a worn wheel and put the dolly back in service the same day.
Specifications
| Wheel | 5" x 2" thermoplastic rubber |
|---|---|
| Mount | Swivel |
| Plate | 4" x 4-1/2" top plate |
| Load rating | 500 lb |
| Plate Size | 4" x 4-1/2" |
| Durometer | 75 Shore A (+/-5) |
| Temperature range | -40° F to 180° F |

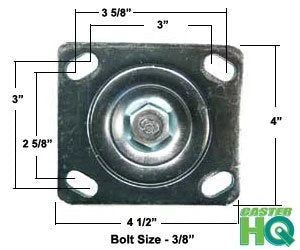

| BOLT HOLE PATTERN | 2-5/8" x 3-5/8" to 3" x 3" |
| Lonestar part number | LSD-30CS520DTR38X-03-STANB-NOSL-ROLB (see variants) |
| Cross reference | 30CS520DTR38X-03 |
How to use it
Divide the load by the number of casters, then leave a margin for shock loads and uneven floors when picking the rating.
